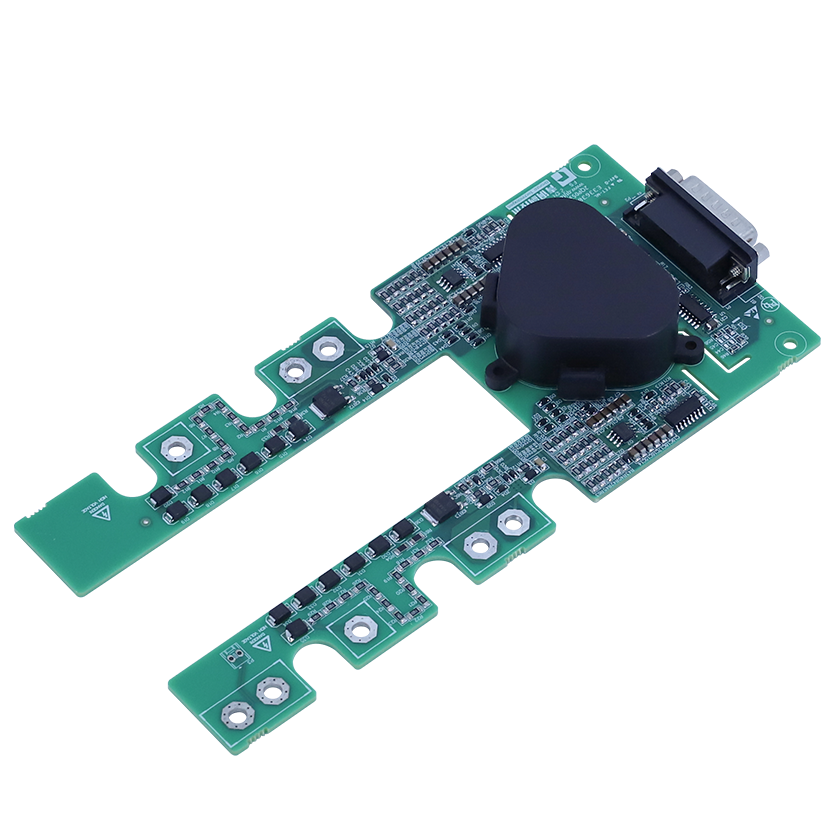

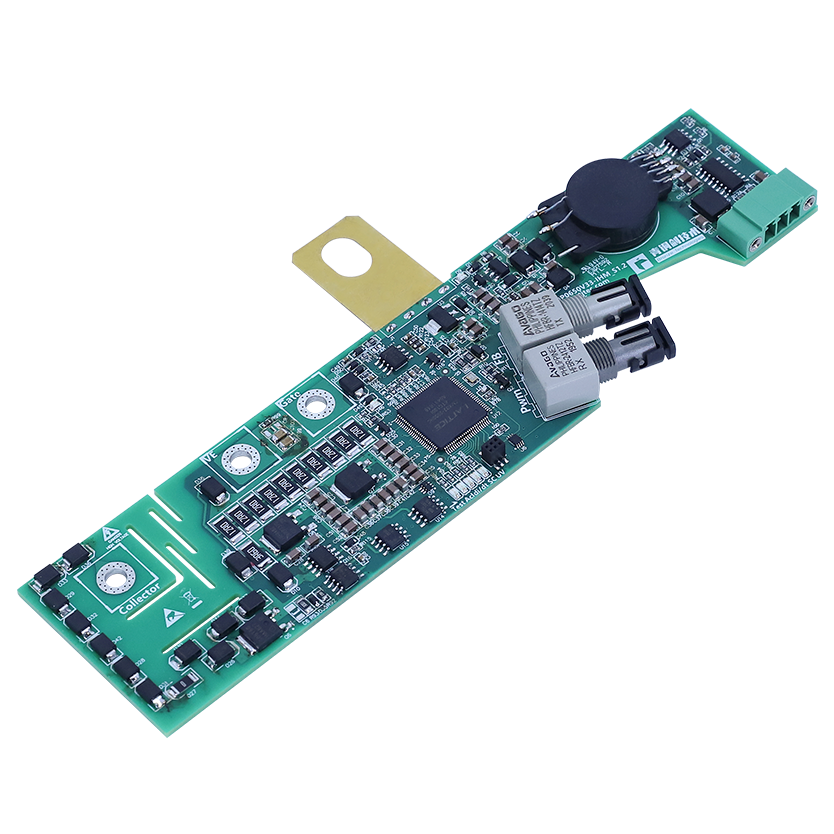

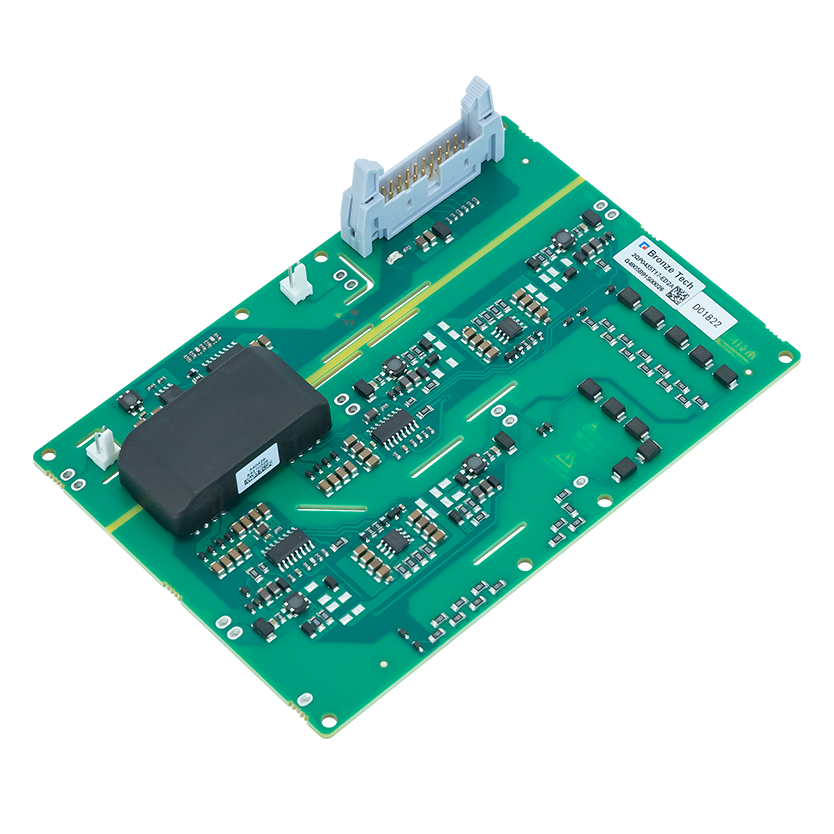

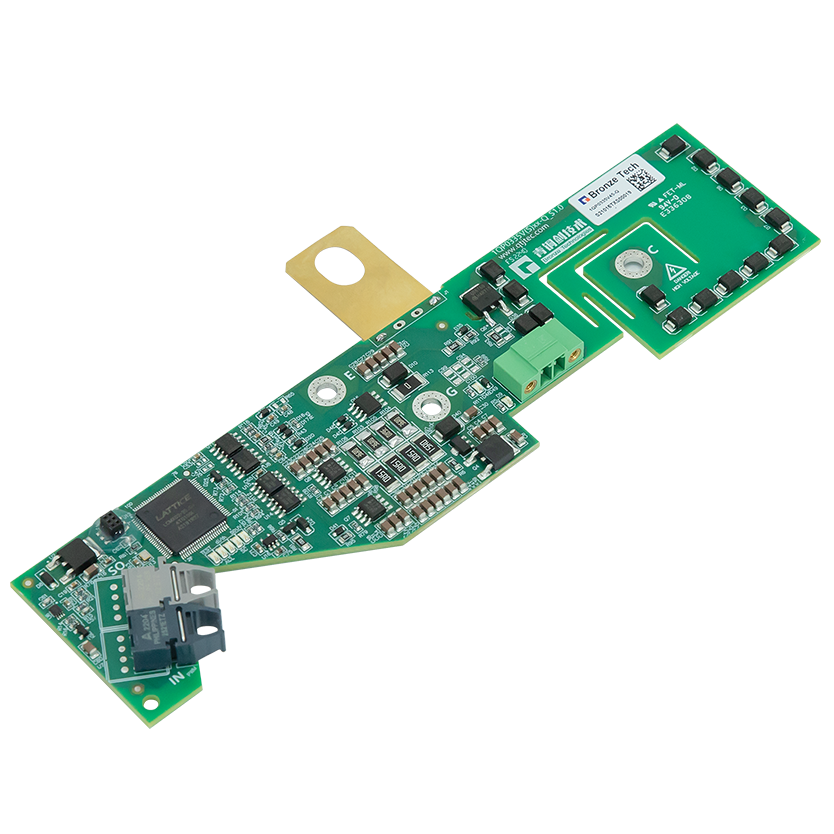

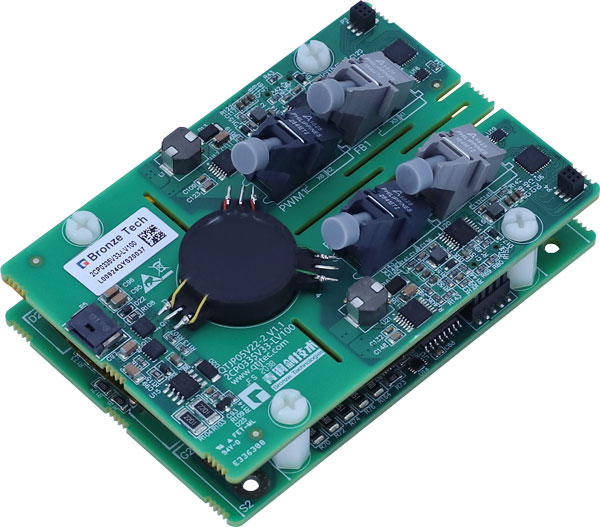

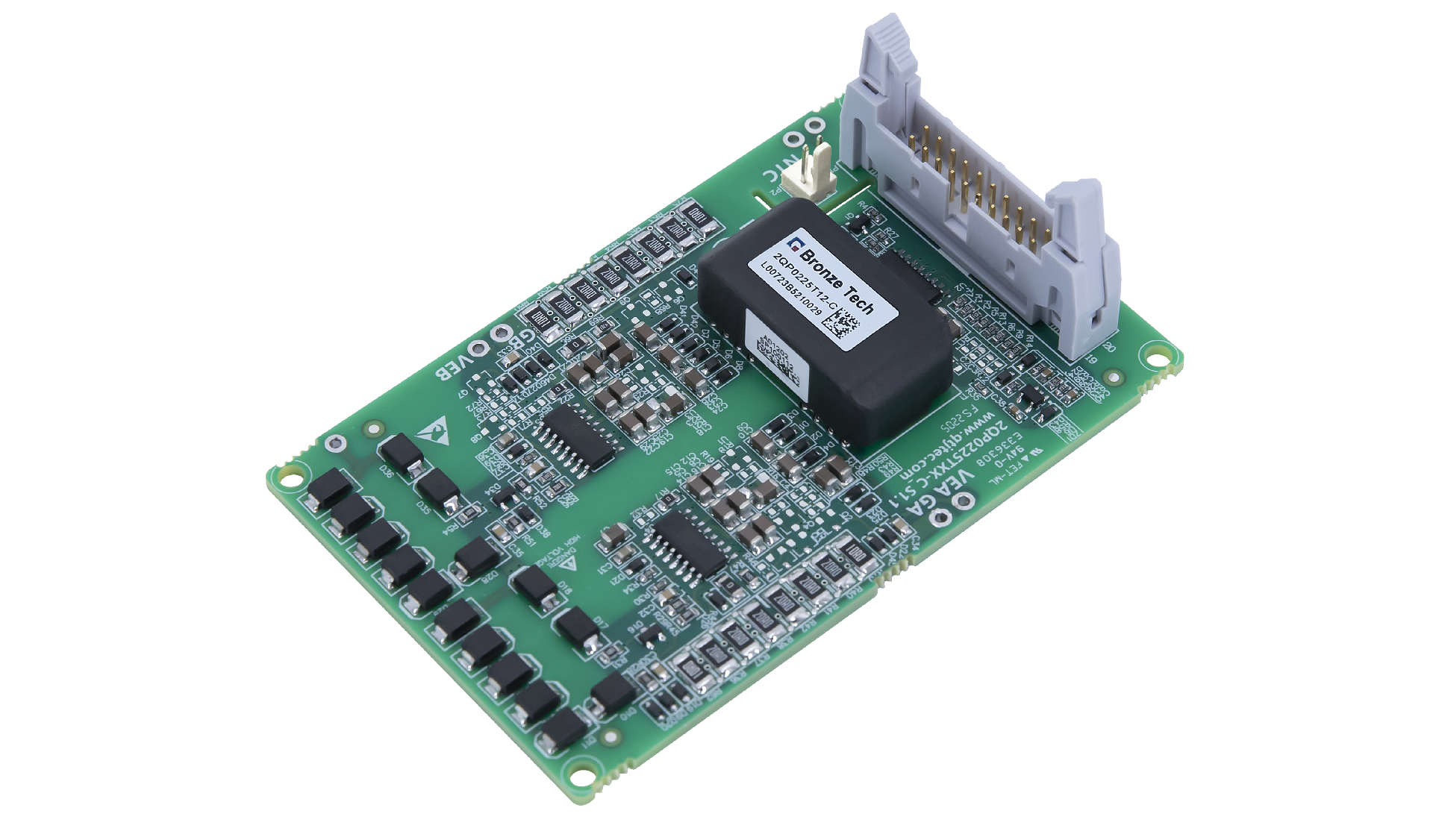

Plug-and-Play Drivers

For IGBT modules with different packages, Bronze Technologies launches a number of plug-and-play drivers suitable for EconoDual?3, EconoPack?+, PrimePack?, IHM e.t.c. This series of products integrates all elements necessary for the complete driver circuitry, and can be applied without external circuitry, which effectively shortens the development period for the users; meanwhile, the highly matched driver parameters can greatly improve the IGBT performance and reliability.

Product List

Clear All
Part Number
Power Device Voltage（V）
Select
Power Device Voltage
V
V
Power Device
Select
Power Device
Package
Select
Package
Topologies
Select
Topologies
Number of Channels
Select
Number of Channels
Number of Paralleled Modules
Select
Number of Paralleled Modules
Output Power（W）
Select
Output Power（W）
W
W
Maximum Output Current（A）
Select
Maximum Output Current（A）
A
A
Maximum Switching Frequency（kHz）
Select
Maximum Switching Frequency（kHz）
kHz
kHz
Ambient Temperature（℃）
Select
Ambient Temperature（℃）
℃
℃
3300 IGBT IHM Single switch 1 1 6 35 10 -40~85
1700 SiC MOSFET 62mm Half-bridge 2 1 3 15 100 -40~85
1200 IGBT EconoDual?3 2 2 25 200 -40~85
1200 SiC MOSFET EconoDual?3 Various topologies 2 2 14 40 -40~125
1700 SiC MOSFET EconoDual?3 Various topologies 2 2 14 40 -40~125
1700 IGBT PrimePack Half-bridge 2 1 3 20 50 -40~85
1700 IGBT PrimePack 2 1 3 20 50 -40~85
