2CP0214T12-RE

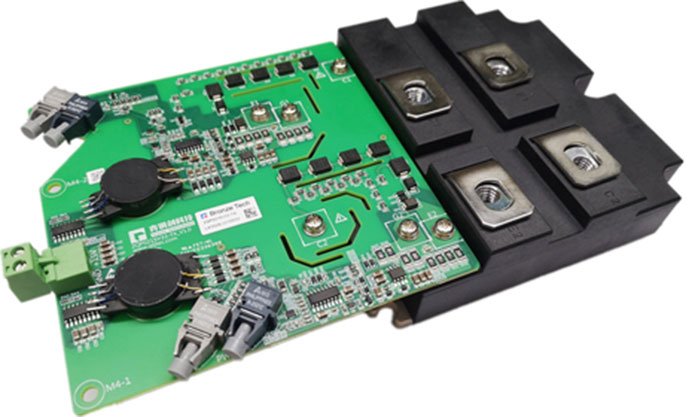

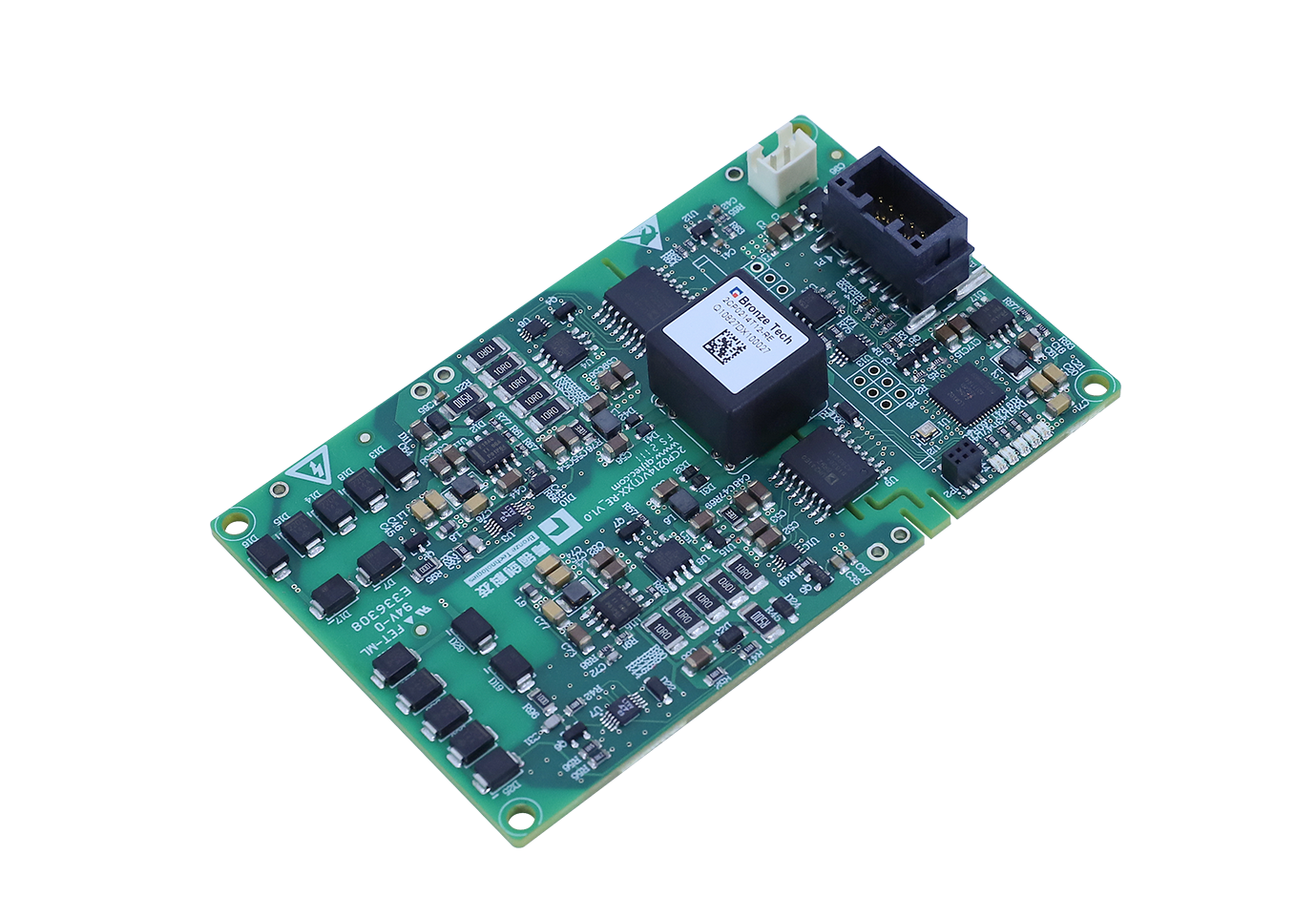

2CP0214T12-RE is a digital driver chip based on CPLD. Specially designed for ROHM EconoDUAL packaged SiC MOSFET, it is a dual-channel half-bridge driver with a compact design and the plug-and-play function.It is commonly used in electric vehicle motor drives and energy storage systems.
2CP0214T12-RE is ideal for multiple topologies constructed with ≤1200V SiC modules. The plug-and-play function allows direct soldering of the driver board on the IGBT module, eliminating the necessity for an adapter. It supports input and output of electric logical signals.

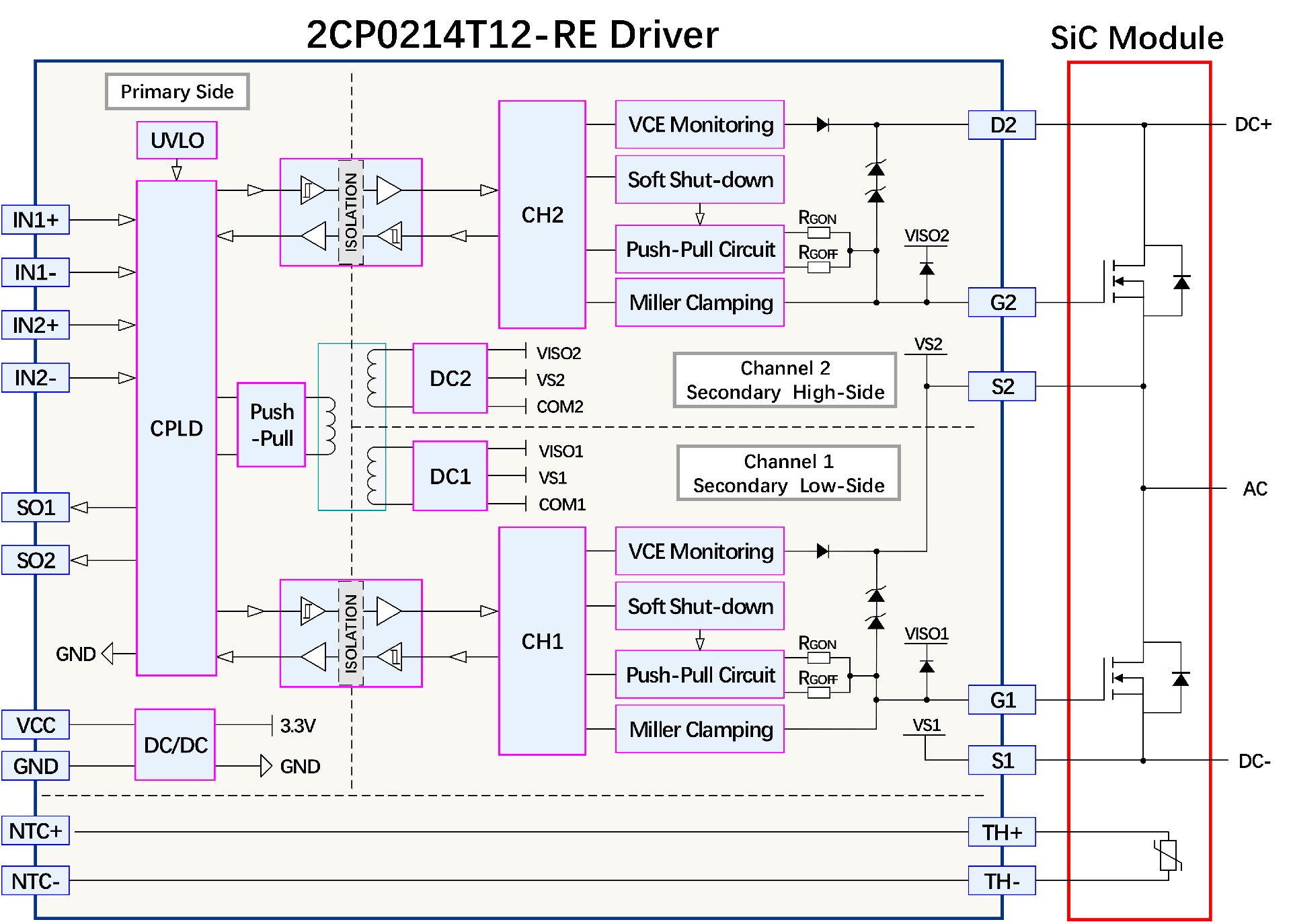

Features
Dual-channel SiC MOSFET gate driver core |
Blocking voltage up to 1200V |
2W driving power per channel |
±14A peak current |
Integrated with isolated DC/DC converters |
Upper/lower-bridge drive interlock protection |
Primary/secondary under-voltage protection |
VCE short-circuit protection |
Integrated with Miller clamping |
Active clamping |
Soft shutdown |

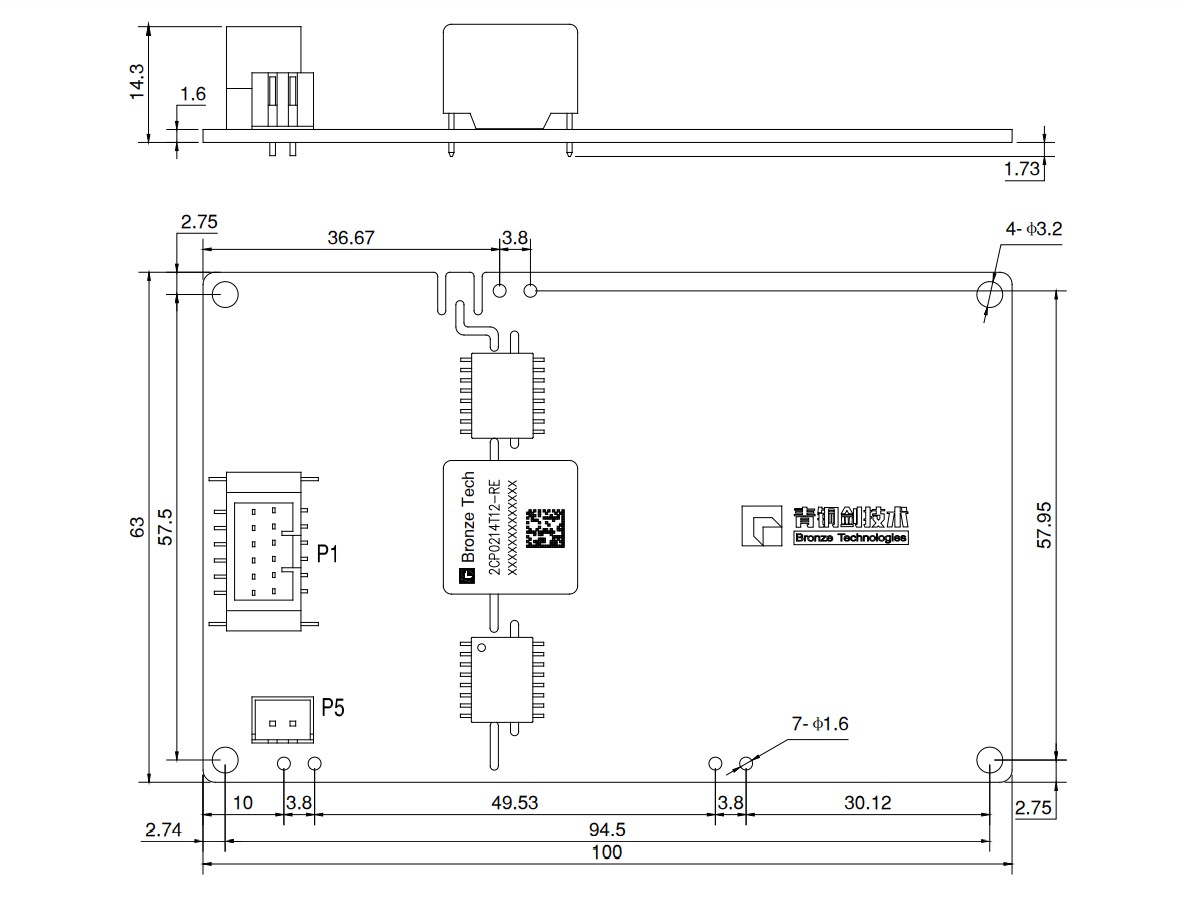

Key parameters
| Maximum Voltage of Power Device | 1200V | Maximum Switching Frequency | 40kHz |
| Turn-ON Voltage | 18V | Turn-OFF Voltage | -2V |
| Driving Power | 2W | Gate Driving Current | ±14A |
| Power Supply Voltage | 15V | Maximum Supply Current | - |
| Operating Temperature | -40~+125℃ | Primary and Secondary Side insulation Voltage | 4500Vac |
