1QP0335V(S)xx-Q

1QP0335V(S)xx-Q is a high-performance digital driver developed for high-voltage high-power IGBTs. Digital control optimizes IGBT switching performance and provides optimal protection for IGBTs.

1QP0335V(S)xx-Q driver is suitable for a variety of topologies built from 4500V and below IHV packaged IGBT modules. The plug-and-play function enables the driver board to be directly fixed on the IGBT without transfer processing.


Bronze_1QP0335V(S)xx-Q_V1.0

Typical Applications

Energy Storage Converters
Traction Converters
Auxiliary converters
Energy-fed converters
Motor drives
Flexible DC Transmission

Features

4500V IHV package single-channel driver
3W power, ±35A peak current
Fiber-optic isolated PWM
Edge feedback
Isolated DC/DC power
Secondary undervoltage lockout
Dynamic advanced active clamping
VCE short-circuit protection
di/dt protection
Soft shutdown

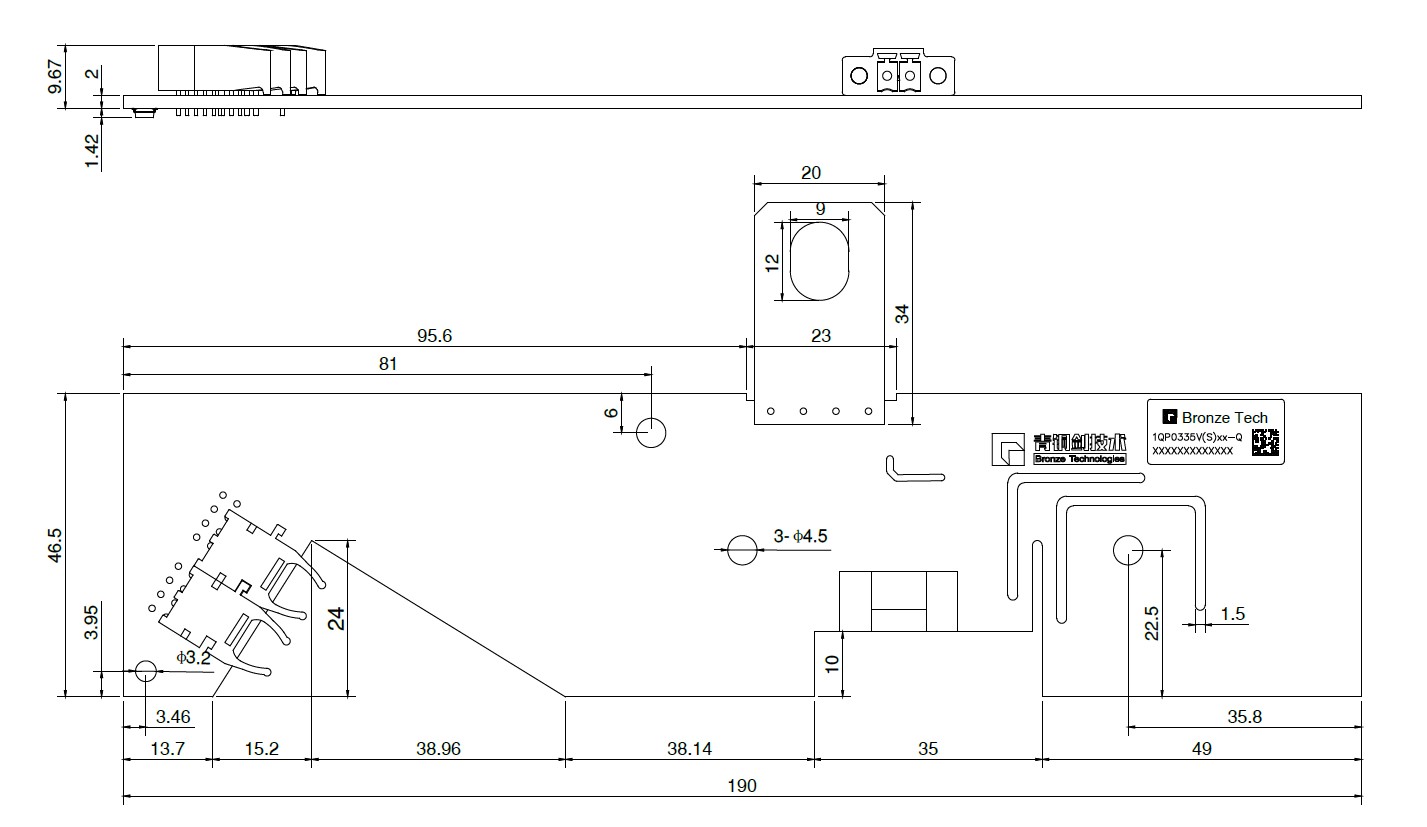

Mechanical Structure

Get a quick overview of overall system functionality.

View full size

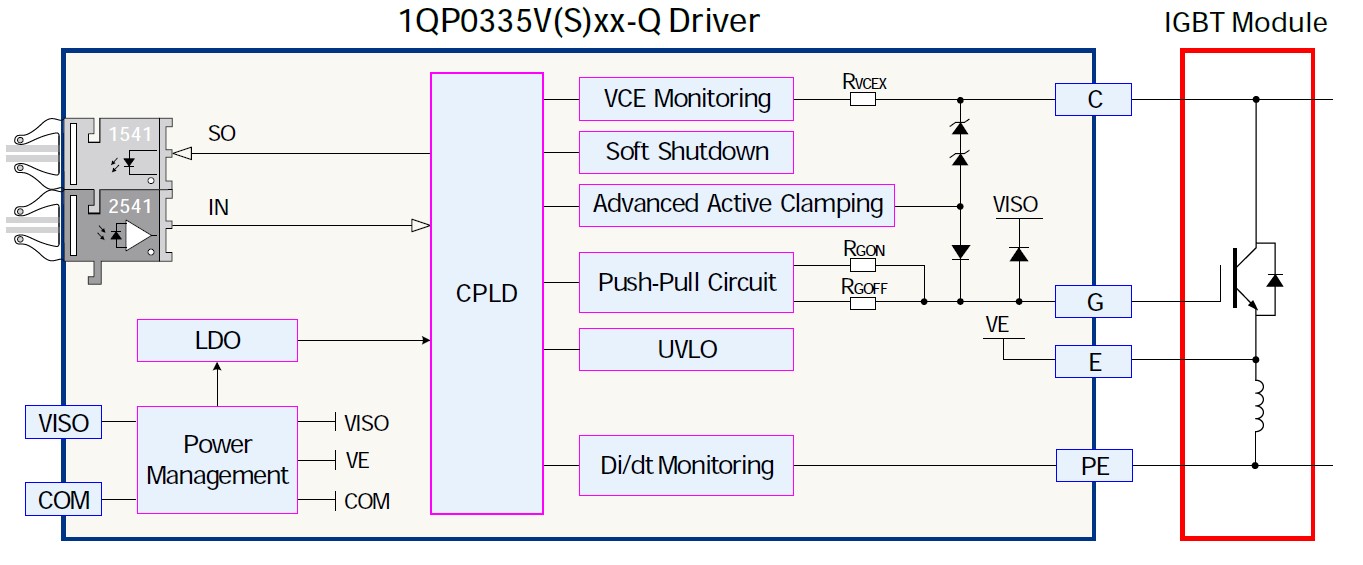

Block Diagram

Get a quick overview of overall system functionality.

View full size

Key parameters

Maximum Voltage of Power Device 4500V Maximum Switching Frequency 2kHz
Turn-ON Voltage 15V Turn-OFF Voltage -10V
Driving Power 3W Gate Driving Current ±35A
Power Supply Voltage 15V Maximum Supply Current -
Operating Temperature -40~+85℃ Primary and Secondary Side insulation Voltage 15000Vac
