1QP0650V(S)xx-IHM

1QP0650V(S)xx-IHM is a high-performance digital driver developed for high-voltage high-power IGBTs. Digital control optimizes IGBT switching performance and provides optimal protection for IGBTs.

1QP0650V(S)xx-IHM is suitable for a variety of topologies built by 140×190mm and 140×130mm packaged IGBT modules ( such as Infineon IHM and ABB HiPak ) with a voltage level of 3300V and below. The plug-and-play function enables the drive board to be installed directly on the IGBT without switching processing.

Bronze_1QP0650V(S)xx-IHM_V1.0

Typical Applications

Energy storage converter
Traction converter
Auxiliary converter
Energy-fed converter
Motor drive
Flexible DC transmission

Features

3300V IHM/HiPAK package single-channel driver
6W power, ±50A peak current
Isolated DC/DC power supply
Fiber-optic interface
PWM edge feedback
Secondary undervoltage lockout
Dynamic advanced active clamping
VCE short-circuit protection
di/dt protection
Soft shutdown
Staged shutdown
8000Vac isolation voltage

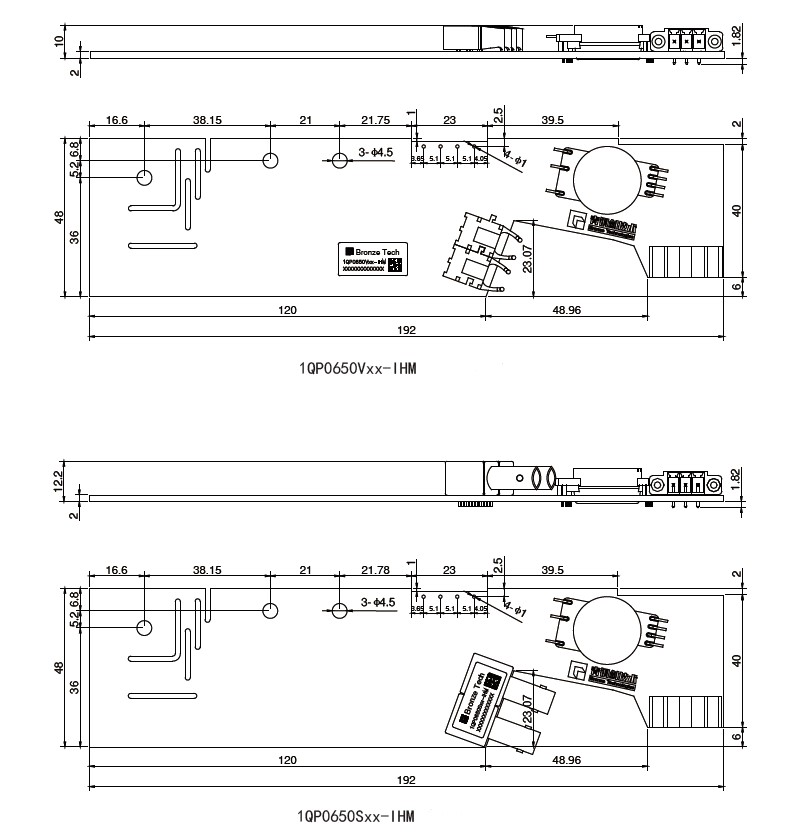

Mechanical Structure

Get a quick overview of overall system functionality.

View full size

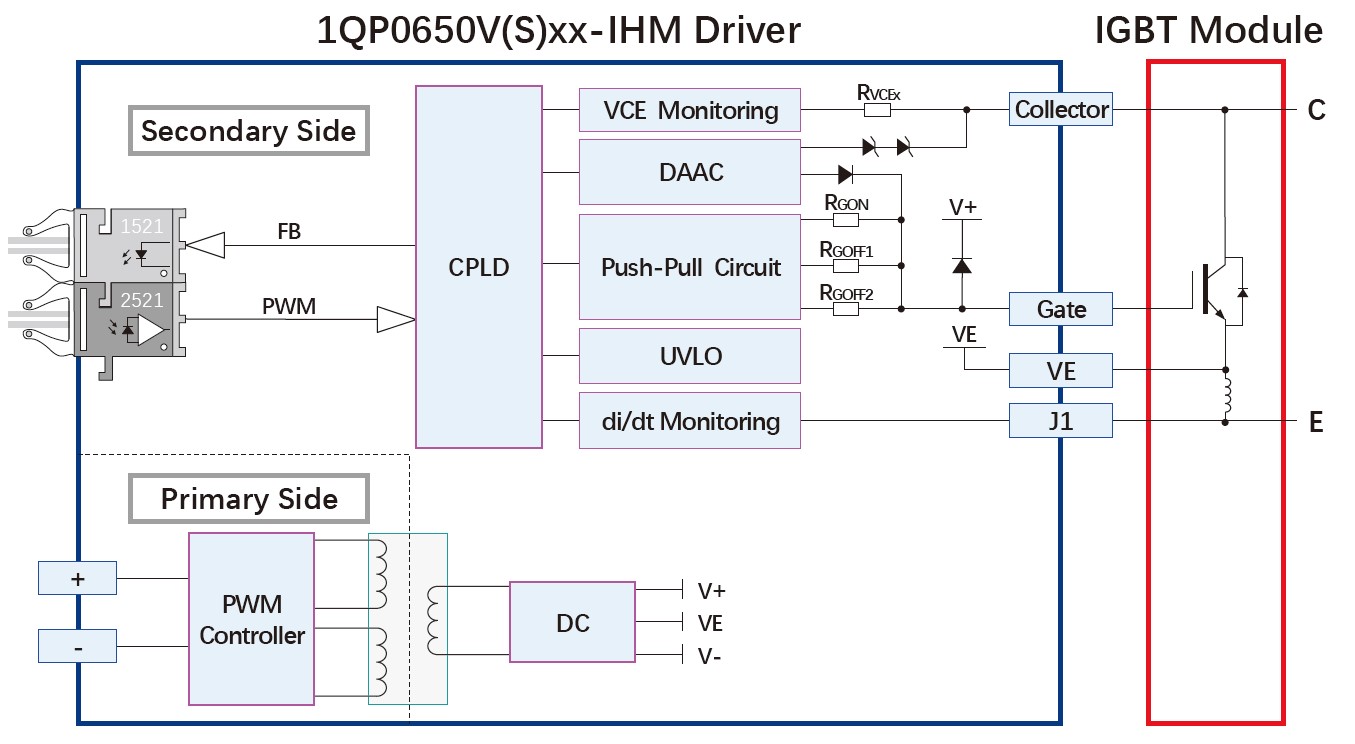

Block Diagram

Get a quick overview of overall system functionality.

View full size

Key parameters

Maximum Voltage of Power Device 3300V Maximum Switching Frequency 20kHz
Turn-ON Voltage 15V Turn-OFF Voltage -10V
Driving Power 6W Gate Driving Current ±50A
Power Supply Voltage 15V Maximum Supply Current -
Operating Temperature -40~+85℃ Primary and Secondary Side insulation Voltage 8000Vac
