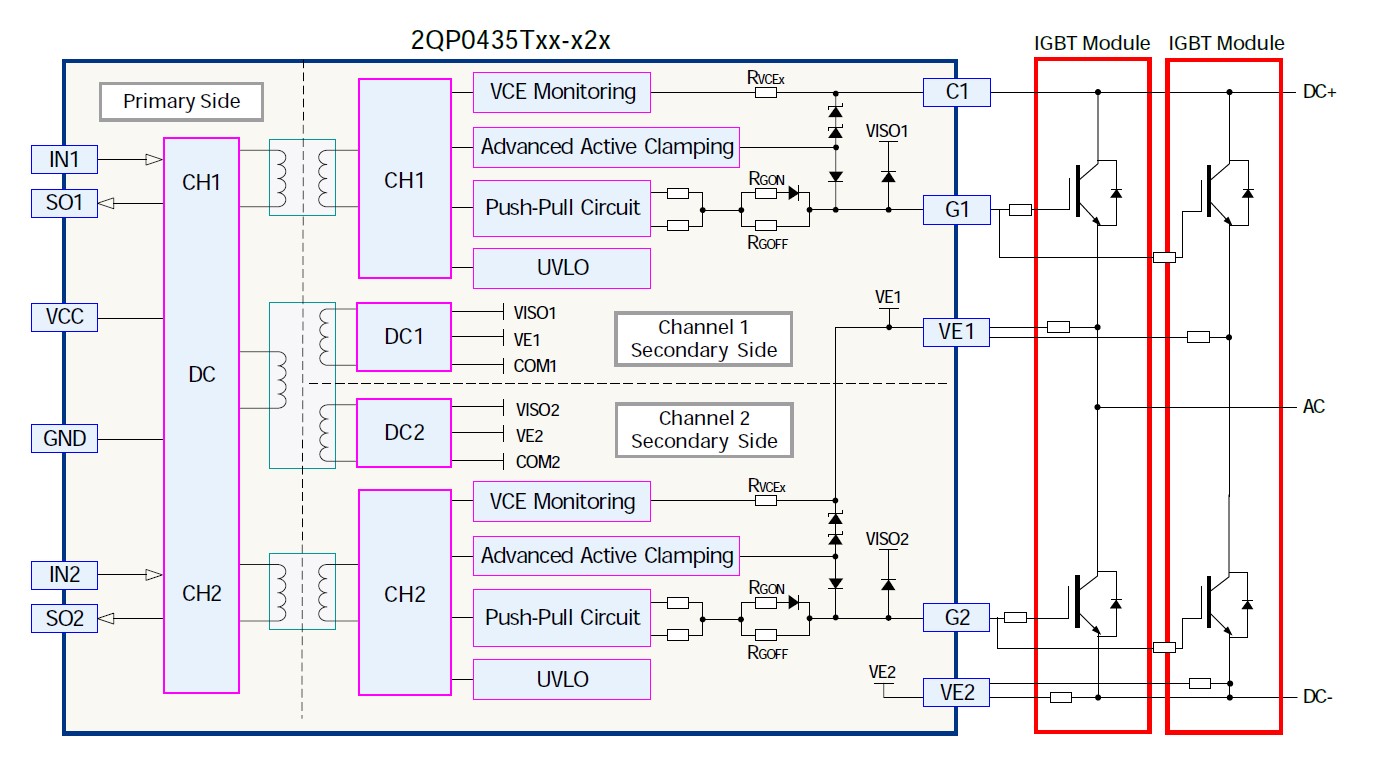

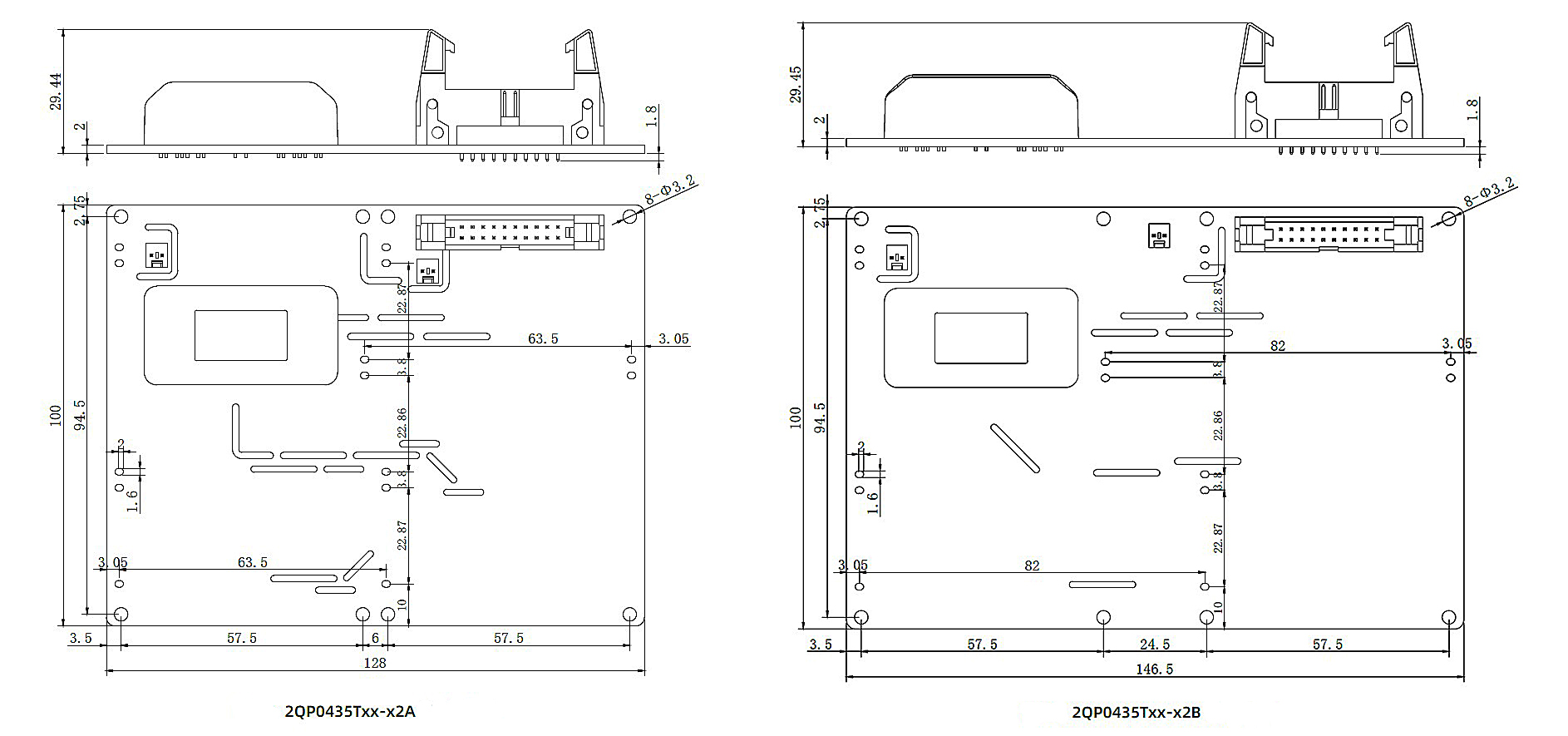

2QP0435Txx-x2x is a dual-channel driver designed based on our self-developed ASIC chip for medium power and high reliability applications.
The 2QP0435Txx-x2x is suitable for the two parallel schemes of the EconoDual package IGBT module at 1700 V and below. The plug-and-play function enables the drive board to be directly welded to the IGBT, and there is no need for transfer processing, which can safely and reliably drive and protect the IGBT module.
Rail transit auxiliary power supply |
SVG |
APF |
High power switching power supply |
1700V EconDual?3 package half-bridge parallel connection plug-and-play IGBT driver |
±35A peak current per channel, 4W driving power |
Isolated DC/DC converter integrated |
Primary/secondary undervoltage lockout |
Advanced active clamping |
IGBT short-circuit protection |
6500Vac isolation voltage |
| Maximum Voltage of Power Device | 1700V | Maximum Switching Frequency | 8kHz |
| Turn-ON Voltage | 15V | Turn-OFF Voltage | -10V |
| Driving Power | 4W | Gate Driving Current | ±35A |
| Power Supply Voltage | 15V | Maximum Supply Current | 530mA |
| Operating Temperature | -40~+85℃ | Primary and Secondary Side Insulation Voltage | 6500Vac |
Follow us on WeChat
Typical Applications
Features
Key parameters
