The BTL2752x family of devices are dual-channel, high-speed, low-side gate-drivers, which can deliver high peak current pulses of up to 5A source and 5A sink into capacitive loads along with rail-to-rail drive capability.
This also enables connecting two channels in parallel to effectively increase current-drive capability or driving two switches in parallel with one input signal. Dual inverting and dual non-inverting input options are provided.
Solar inverters |
Motor drives |
EV charger |
Industrial power supplies |
Low side gate driver with two independent output channels |
5A peak source and sink drive current |
Certain versions with independent enable fucntion for each output |
Fast rise and fall times |
TTL and CMOS compatible logic threshold independent of supply voltage |
Fast Propagation delay (13ns typical) |
Supply undervoltage lockout (UVLO) |
Inputs withstand -5V continuous voltage |
Inputs features Schmitt-trigger characteristic to enhance interference immunity |
Two outputs can be connected in parallel to increase drive current |
Operating temperature -40~140°C |

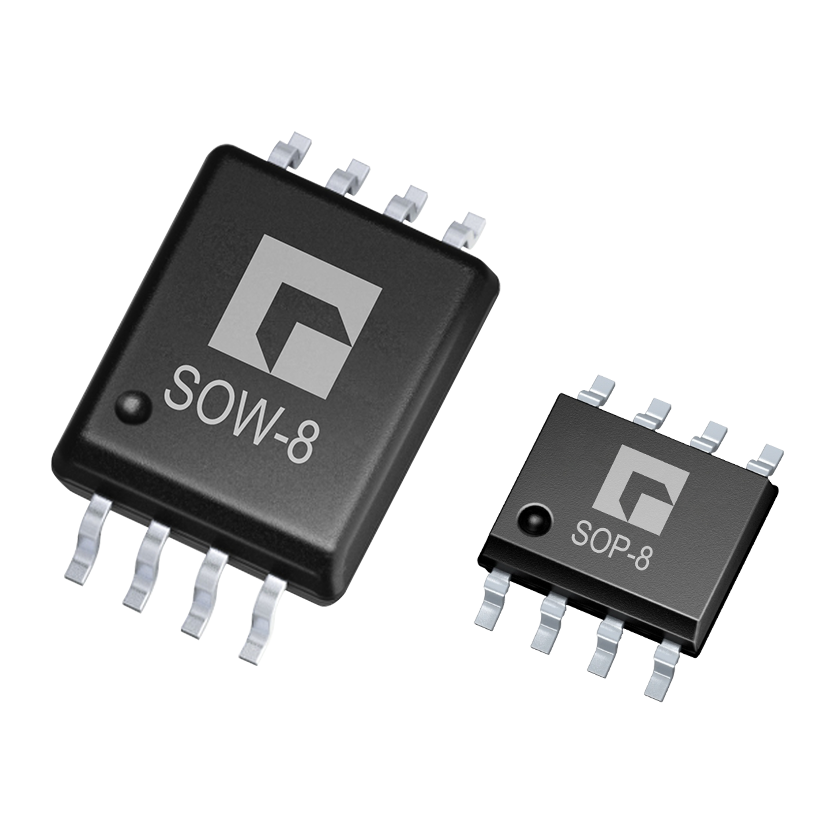

SOP-8 Option |
