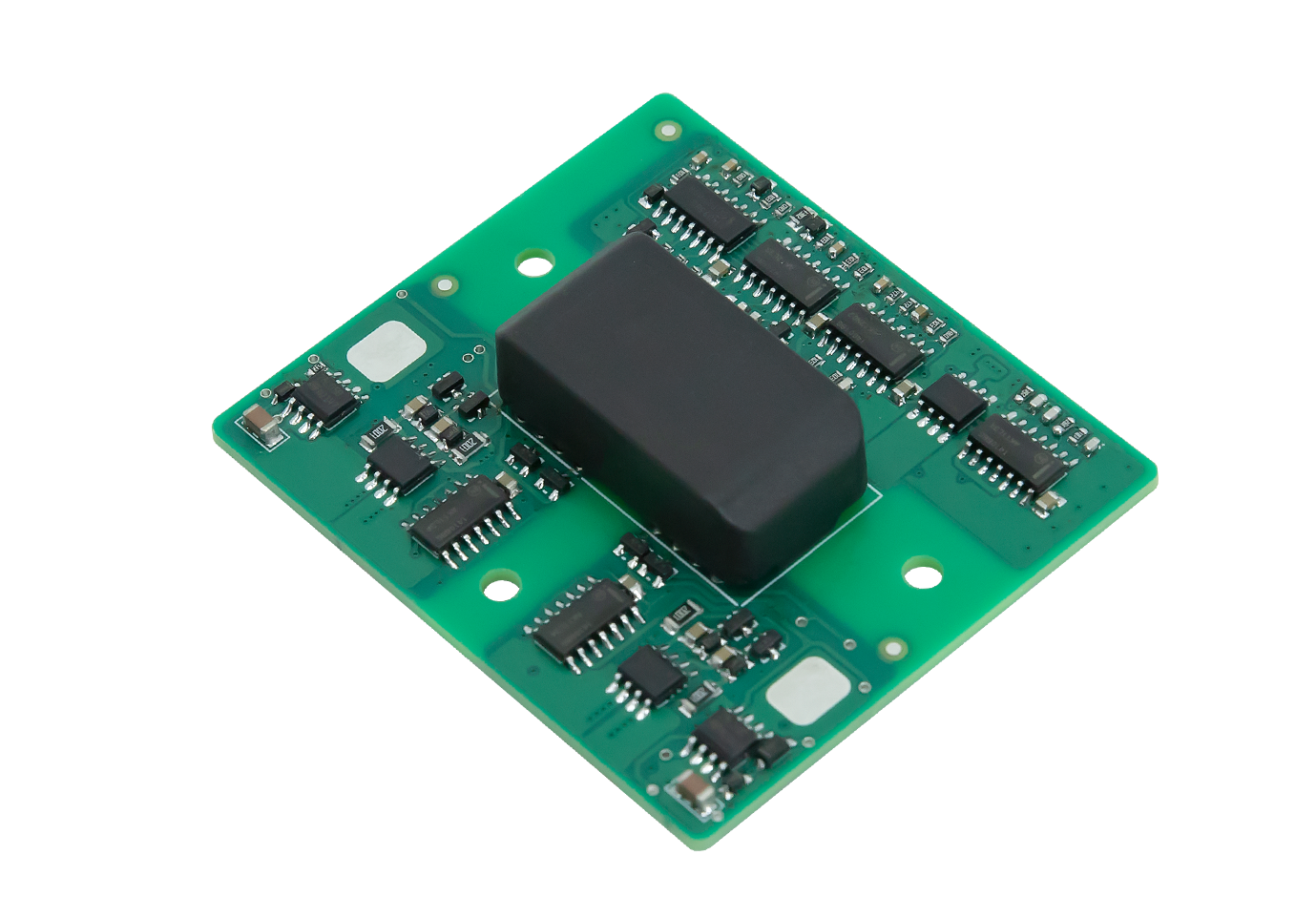

2QD32R-S

2QD32R-S is a medium- and high-power, high-reliability, dual-channel driver designed specially for SEMIKRON SKYPER 32R. It is fully compatible with SEMIKRON SKYPER 32R, and serves directly as a substitute without any effort in adjusting or redesign the driver for a specific application.
2QD32R-S is suitable for two-level topologies constructed with IGBT modules up to 1700V, combined with a compatible base plate.

Typical Applications Features Key parameters

Typical Applications

PV inverters	Energy storage converters	Wind converters
High-power SMPS

Features

Dual-channel IGBT gate driver core	Blocking voltage up to 1700V	2W driving power per channel
±15A peak current	Integrated with isolated DC/DC converters	PWM interlock protection
Primary/secondary under-voltage protection	VCE short-circuit protection	Short pulse suppression

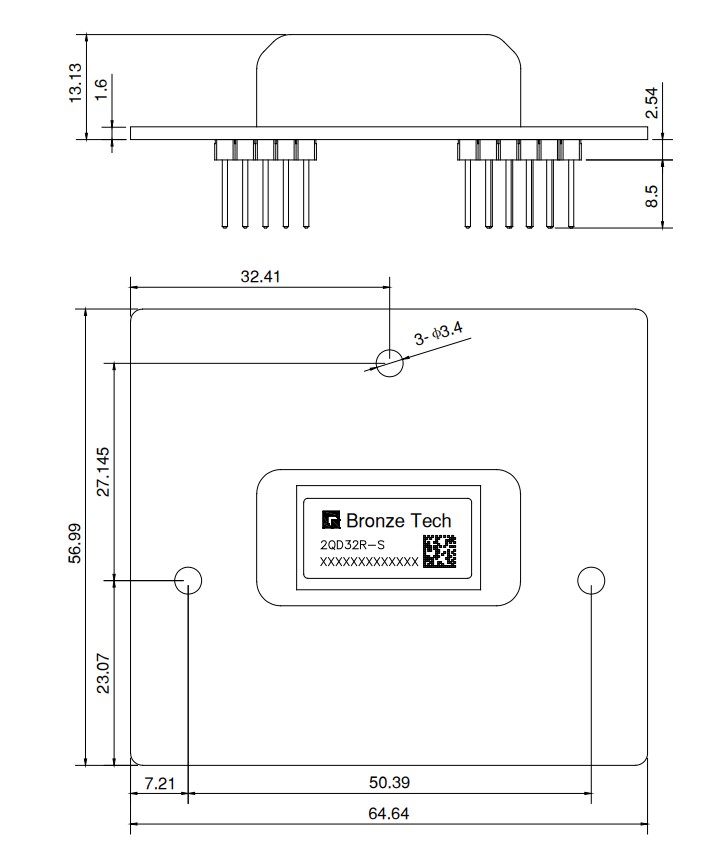

Mechanical Structure

Get a quick overview of overall system functionality.

View full size

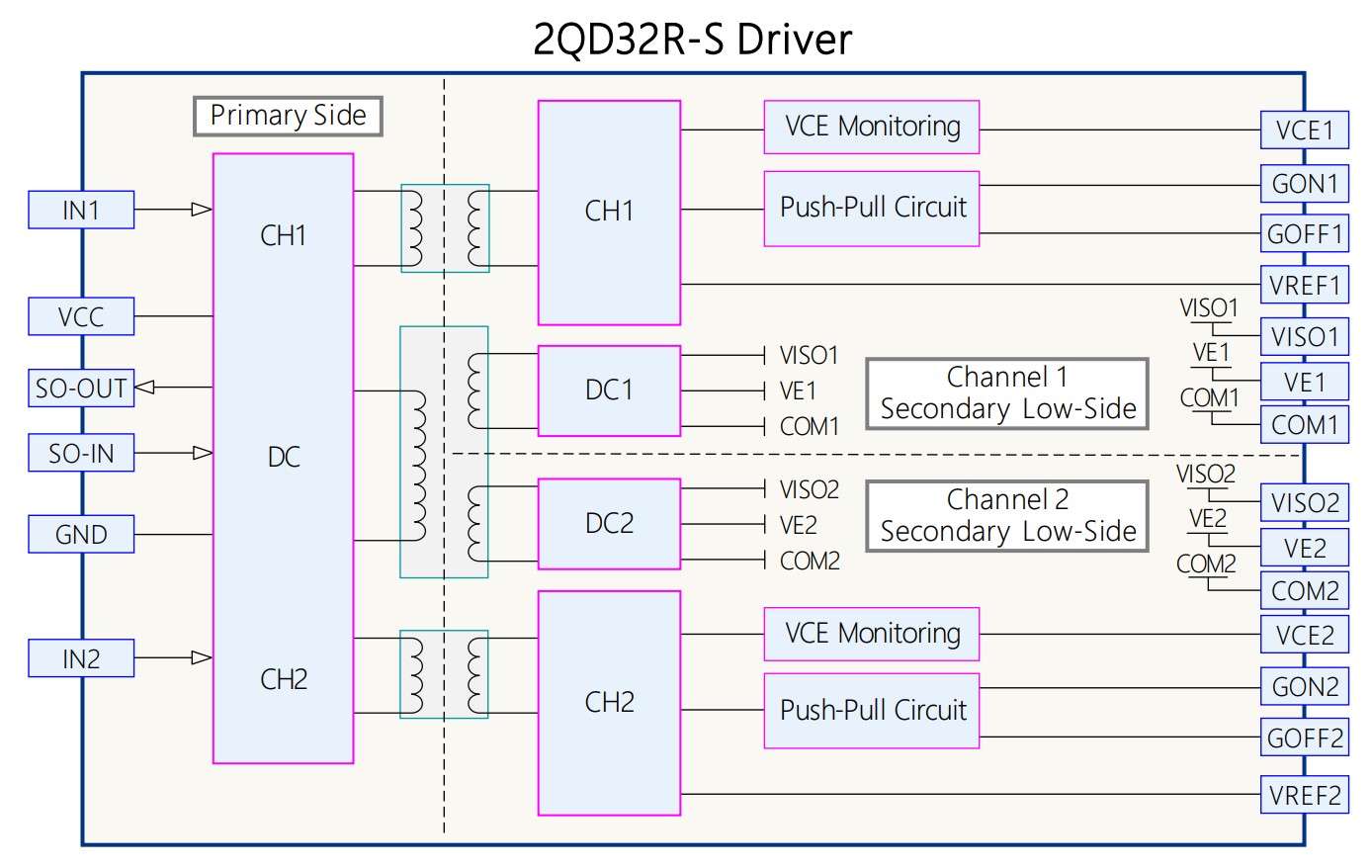

Block Diagram
